AI Human sensor Advantage :
The sensor is an crucial part of the automatic door system, which plays the role of detecting and sending the door opening signal, ensuring the safety of access.
1, The maximum installation height is 5 meters, ultra-high doors are also applicable.
2, Suitable for sliding doors, especially for single or double-leaf swing doors, full range recognition and protection.
3, Embedded type and exposed type are available, also support fixed and moving place to install.
4, Provide motion and safety function for automatic door system, and can be adjusted the activate and safety detection range separately.
5, Camera just for recognizing the human body, data won't connect and store by mobile device. Don't worry about privacy issues.
TEL:+8618971265826
Human Recognition Camera Sensor function:
Skype:autodoorleader
LV805 Moving type human figure recognition Sensor
Night version:
Built-in infrared fill light bead, enhance the ability to recognize at night.
Send an inquiry
Email:autodoorleader@gmail.com
You are here:Home > Product list >Access control system & accessories > Human Recognition Camera Sensor
WhatsApp:+8618971265826
AIhuman figure intelligent detection:

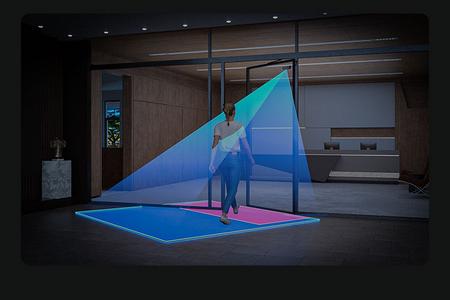

Only detection the human figure in the sensing area, and don't output signals for other stationary or moving objects
Infrared camera sensor parameter:
Detection Function: Human figure activated, safety
Camera Pixel: HD 1080P
Response Speed: 100ms
View Angle Adjustment: 20
LED indicator: Standby in BLUE, Activated in RED, Safety in RED light flashes
Power Supply: AC/DC 12-30V
Current: Standby 95mA, action 130mA
Installation Height( max): 5 meters
Dimension: 157x53x34mm
